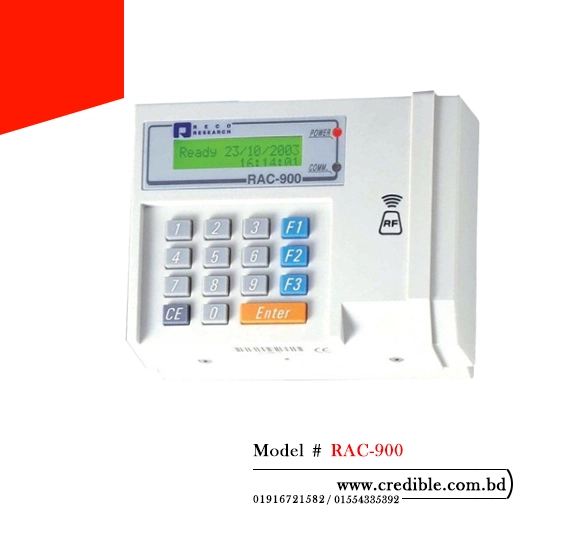

Hundure RAC-900 Access Control & Time Attendance system
|
Specifications| Model No. | RAC-800 | RAC-900 | | Input ports | 3 Sensors
(Door Sensor,
Exit Button,
Case Sensor) | 8 Sensors
( Five of input port reserved )
(Door Sensor, Exit Button,
Case Sensor) | | Output Ports | 2 Relay (Door Lock, Alarm) | | Cardholders | 4,096 | | Events | 2,048 (max) | | LED Indicator | Power x 1, COMM. x 1 | | LCD Display | 2 lines messages, 16 characters per line, with back light | | Keypad | 15 keys 0~9, F1, F2, F3, CE, Enter | | Real Time Clock | Yes | | Beep Tone | Buzzer | | ID Setting | Software | | Read Format & Range | ABA-Track2 / Wiegand26 x 1 | | * Bar Code type | Resolution: 0.15mm;
Scanning Speed:100~1000mm/sec | | * Magnetic Type | ISO3554 Standard Track 1 or 2 or 3
Scanning Speed: 3~40ips | | * Proximity type | RF 125 KHz, Effective range : 8~10cm | | * Mifare type | RF 13.56 MHz, Effective range : 5cm | | * HID Type | RF 125 KHz, Wiegand 26 | | Power Output | DC5V 100mA / DC12V 100mA (max.) for slave reader | | Power Input | DC 12V / 1A | | Power Consumption | 5W (max.) | | Comm. Interface | RS-232 / RS-422 / RS-485 | | Comm. Baudrate | 9600 bps-N-8-1 | | Operating Temp. | 0° C ~ 50° C / 32° F ~ 122° F | | Relative Humidity | 20% ~ 80%(Non-condensing) | | Dimension | 153mm(L) x 120mm(W) x 60mm(H) | | Weight (Device) | 692g |
|
